Product Overview & Application Piv txwv
Qhov no 40 × 20 × 10 hli neodymium hlau nplaum yog tsim los ntawm siab - zog N50 qib NdFeB cov khoom, tsim kom xa siab tuav quab yuam nyob rau hauv lub compact duab geometry. Qhov zoo tshaj qhov loj thiab nam piv muab cov khoom sib nqus zoo thaum txhawb kev koom ua ke rau hauv qhov chaw- txwv kev sib dhos.
Cov hlau nplaum muaj kev tiv thaiv nrog dub epoxy txheej, muab kev tiv thaiv zoo rau corrosion, av noo, thiab nto hnav piv rau cov txheej txheem hlau txheej. Qhov no ua rau nws tsim nyog rau cov ntawv thov raug cuam tshuam rau ib puag ncig hloov pauv lossis ntev - cov kev xav tau kev pabcuam sijhawm.

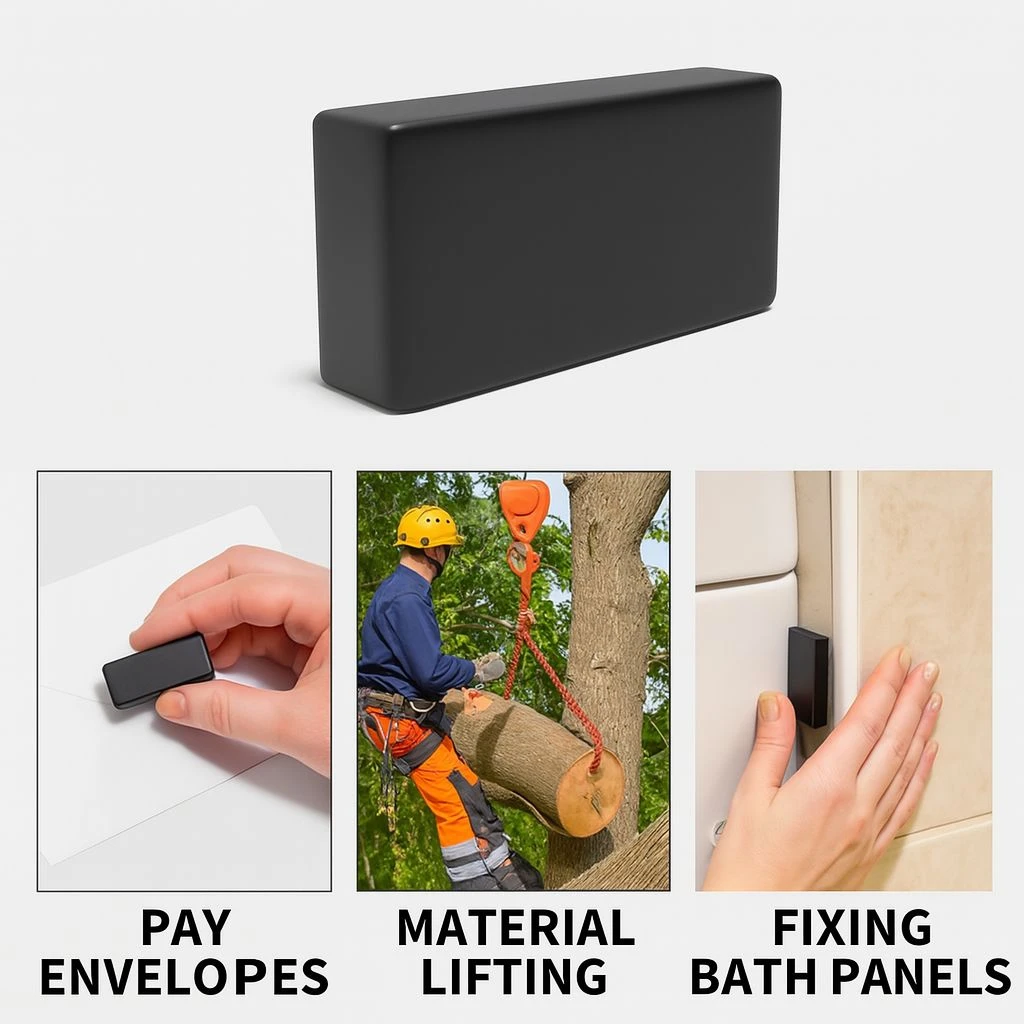

Nrog rau qhov siab tshaj plaws rub tawm mus txog 27.28 kg nyob rau hauv cov xwm txheej zoo tagnrho, cov hlau nplaum no yog tsim los rau kev tuav ruaj khov, tso chaw, thiab kho kom haum rau kev thov. Cov xwm txheej siv xws li cov khoom siv kho mob, cov khoom siv tsheb, cov cuab yeej tsim khoom, cov khoom siv sib dhos, thiab cov kev daws teeb meem sib nqus, qhov chaw sib nqus ruaj khov thiab ua haujlwm ntev yog qhov tseem ceeb.
Khoom siv: Neodymium (NdFeB)
|
Khoom npe |

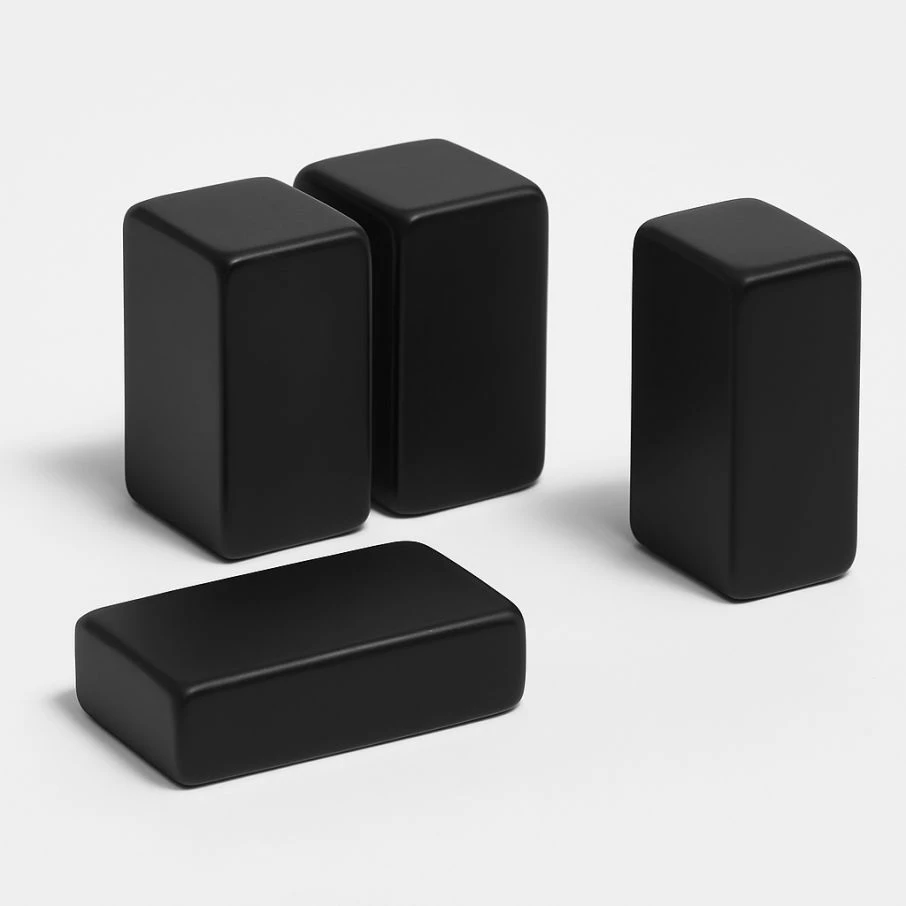

Dub Epoxy Coated lub voos xwmfab hlau nplaum |
|
Cov duab |
Channel, Mount, Thaiv, |
|
Magnetic Qib |
N50 (Br Ntau dua lossis sib npaug rau 14.6 kGs, Hcj Ntau dua lossis sib npaug rau 12 kOe) |
|
Qhov ntev |
L40mm x 20mm x 10mm (Customizable) |
|
Dimensional kam rau ua |
Ntev ± 0.05mm, Dav ± 0.05mm, Thickness 0.05mm |
|
Ua haujlwm kub |
Tsawg dua lossis sib npaug li 80℃(siab -temp version muaj) |
|
Qhov ntom |
Ntau dua lossis sib npaug li 7.5 g / cm³ |
|
Max Gauss |
1850 |
|
Pull (KG) |
17.04 |
|
Nto Sib Nqus Field |
3800 ± 200 Gauss ( ntsuas nrog TM-801 Gauss meter) |
|
Sib nqus Flux |
2.3 mWb ( ntsuas nrog fluxmeter) |
N50 Neodymium Magnet
N50yog qib siab -qib neodymium hlau boron (NdFeB) hlau nplaum paub txog nws cov khoom siv hlau nplaum muaj zog heev hauv qhov loj me. Nws yog tsim rau cov ntawv thov uas qhov siab tshaj plaws sib nqus quab yuam yuav tsum nyob rau hauv qhov chaw txwv.
Cov yam ntxwv tseem ceeb
Siab sib nqus zog heev:
Muab cov hlau nplaum muaj zog dua li cov qauv qib, ua kom cov hlau nplaum me me thiab sib dua.
Qhov chaw -Txuag Tsim:
Qhov zoo tshaj plaws rau kev sib sau ua ke uas qhov kev ua haujlwm siab xav tau yam tsis muaj qhov loj.
Standard Temperature Rating:
Tsim los rau kev khiav hauj lwm kub txog li80 degree.
Tej kev siv:
Dav siv nyob rau hauv lub cev muaj zog, cov cuab yeej sib nqus, sensors, hais lus, thiab siab -kev ua tau zoo hauv kev lag luam
▲ Cov ntsiab lus
N50 muaj lub zog sib nqus tshwj xeeb thiab tso cai rau kev cog lus, siab - qauv tsim. Nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg siv khoom uas xav tau kev ua haujlwm siab tshaj plaws thiab qhov chaw ua kom zoo dua qub nyob rau hauv qhov kub thiab txias.

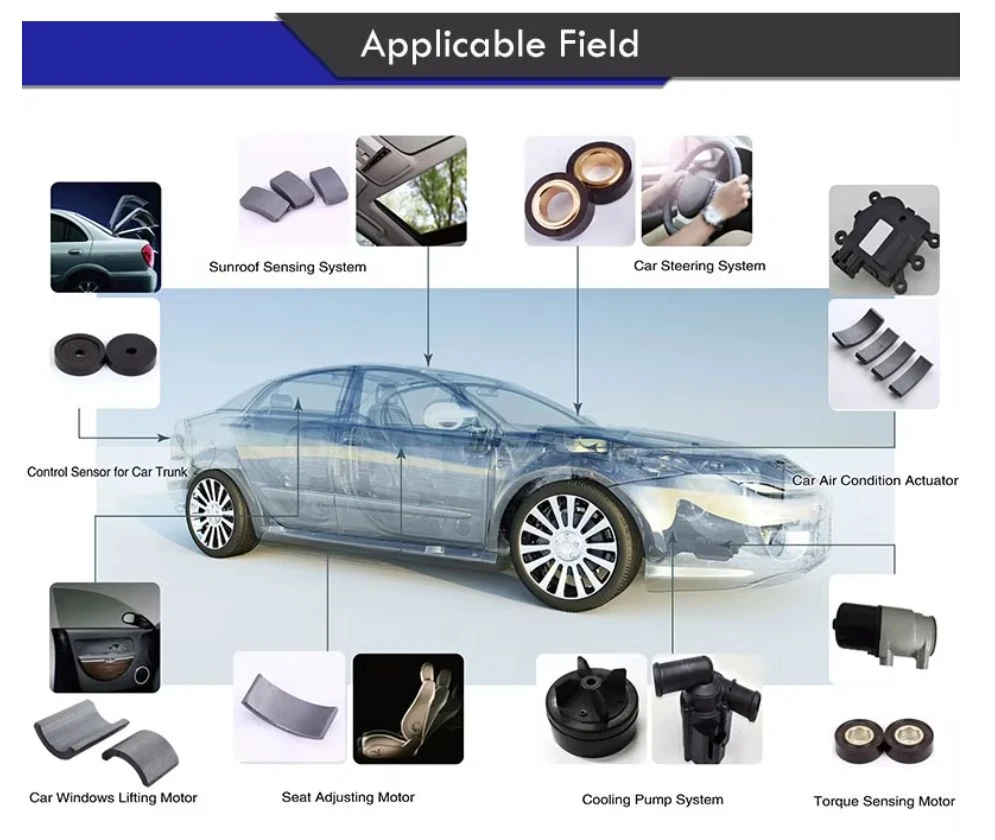

Daim ntawv thovCov xwm txheej
Electric Tsav & Generators
Daim ntawv thov: Precision-cov hlau nplaum uas muaj hlau nplaum yog ua haujlwm hauv stators, rotors, thiab brushless DC motors los txhim kho cov hlau nplaum sib nqus, kev ua haujlwm zoo, thiab kev ua haujlwm torque.

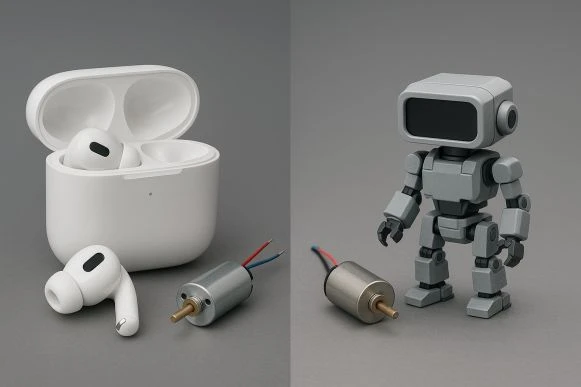

Consumer Electronics
- Daim ntawv thov:High-kev ua tau zoo neodymium hlau nplaum tau koom ua ke rau hauv cov hais lus, lub tshuab haptic, vibration motors, thiab sensors, pab txhawb kev tsim qauv tsim thiab txhim khu kev qha.
Kev tshuaj ntsuam xyuas

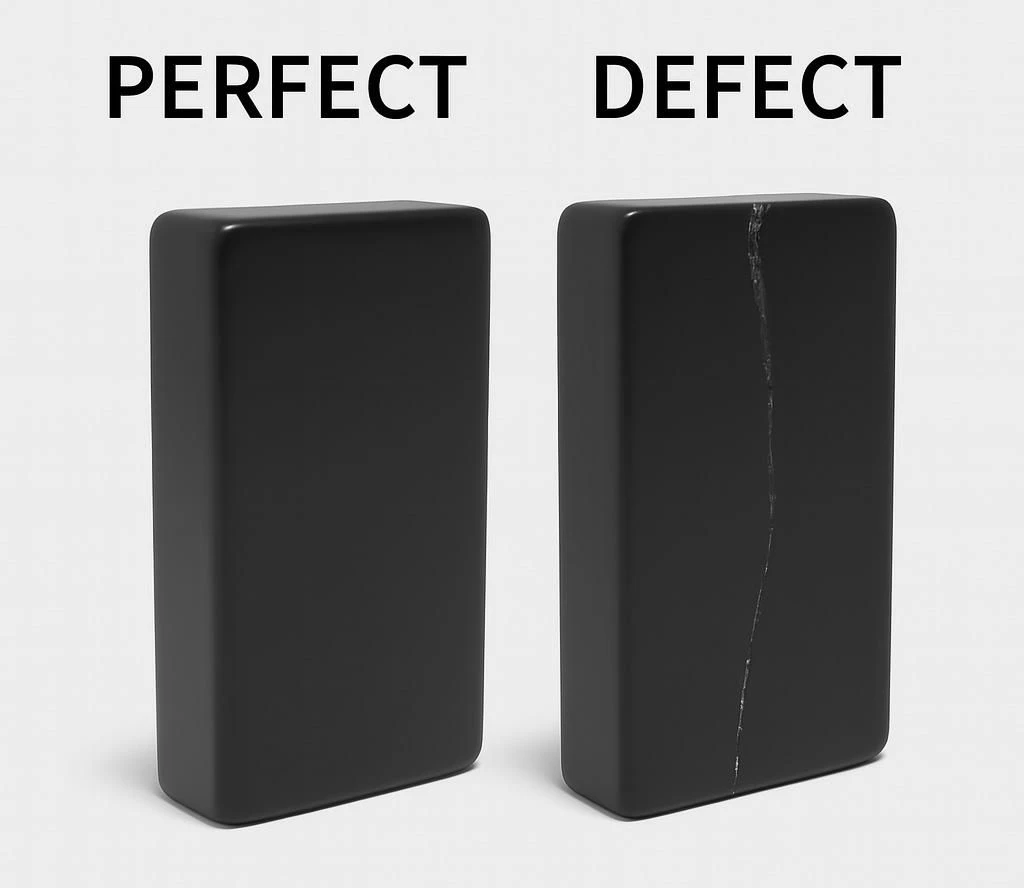

Surface and Appearance Verification
Tag nrho cov khoom tau txais cov ncauj lus kom ntxaws saib xyuas los ntawm cov kws tshuaj ntsuam xyuas tau zoo nyob rau hauv kev tswj lub teeb pom kev zoo. Cov txheej txheem no txheeb xyuas qhov tsis xws luag xws li micro- tawg, ntug puas, sab hauv impurities, porosity, los yog thaum ntxov- theem corrosion.
AI-Raws li kev tshuaj xyuas qhov muag
Cov tshuab tsis pom kev tsis pom kev nruab nrog siab - kev ntsuas nrawm thiab tshuab- kev kawm algorithms yog siv los tshuaj xyuas txhua ntu. Cov tshuab no raug txheeb xyuas qhov tsis zoo ntawm qhov chaw, qhov sib txawv ntawm cov xim, thiab qhov sib txawv ntawm qhov sib txawv, ua kom muaj txiaj ntsig zoo rau kev tshuaj xyuas thaum txo qis kev txiav txim siab.
Sib nqus Output Uniformity Assessment
Kev ua tau zoo sib nqus raug txheeb xyuas siv cov cuab yeej ntsuas ntsuas ntsuas ntsuas ntsuas, suav nrog Hall sensors thiab ntsuas ntsuas flux, kom paub meej tias qhov sib nqus ntawm cov khoom tsim tawm thoob plaws cov khoom siv thiab ua kom muaj kev ruaj ntseg hauv cov neeg siv khoom.
Kev tiv thaiv ntim rau NdFeB Magnets
Magnets yogaligned thiab stackednyob rau hauv kev tswj orientation kom txo tau magnetic attraction rog.
Separator nplooj ntawvmuab tso rau ntawm cov hlau nplaum kom txo tau qhov chaw puas.
Bundles yog nruj nreem qhwv rautiv thaiv kev txav mus los thaum thauj.
Ntim cov ntaub ntawv raug xaiv rauabsorb shock thiab txo kev vibration.
Cov cartons kawg yog tsim los tswjmechanical integrity thiab magnetic kev ruaj ntsegnyob rau hauv tag nrho cov logistics tuav.
FAQ
batch-rau-batch sib nqus zoo li cas kom ntseeg tau?
Kev ua piv txwv thiab SPC (Statistical Process Control) yog siv rau qhov tseem ceeb sib nqus xws li Br, Hcj, thiab BHmax. Kev sib txawv yog txheeb xyuas kom muaj kev ua tau zoo sib xws hauv cov khoom tsim khoom.
Cov kev ntsuam xyuas dab tsi yog siv los ntsuas qhov thermal stability?
Thermal stability yog txheeb xyuas los ntawm kev ntsuas kub ntawm - qhov ntsuas kub, ntsuas cua sov, thiab ntsuas cua sov. Cov khoom sib nqus raug ntsuas tom qab txhua theem txhawm rau txheeb xyuas qhov kev puas tsuaj lossis qhov tsis tuaj yeem rov qab tau.
Yuav ua li cas corrosion kuj kuaj rau NdFeB hlau nplaum?
Kev tiv thaiv corrosion raug soj ntsuam los ntawm kev ntsuas tshuaj ntsev (ASTM B117 / ISO 9227), ntsuas av noo, thiab ntsuas cua sov. Cov kev sim no simulate hnyav ib puag ncig thiab xyuas cov txheej txheem zoo.
