Product Overview& Daim ntawv thov piv txwv

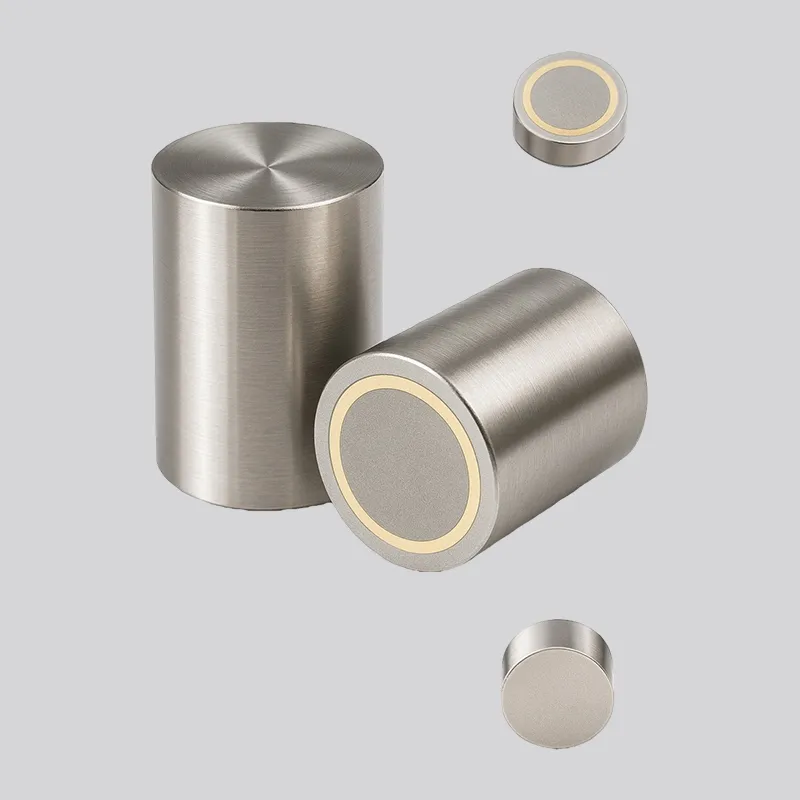

Muaj zog ruaj khov cylindrical hlau nplaum rau Industrial. Xws li txhuam tsawg DC motors (BLDC), cua turbine rotors, thiab siab -torque industrial motors. Cov hlau nplaum nta cov qauv arc thiab tuaj yeem kho raws li qhov nkhaus, tuab, sab hauv / sab nraud, thiab kev taw qhia magnetization. Nrog optimized arc geometry thiab precision orientation magnetization, nws muab kev ruaj khov thiab zoo sib nqus flux tso zis, ua kom muaj kev ua tau zoo txawm tias nyob rau hauv siab -kev sib hloov ceev lossis hnyav-load tej yam kev mob nrog ruaj khov cylindrical hlau nplaum
Technical Parameters
|
Khoom npe |
Muaj zog ruaj khov cylindrical hlau nplaum |
|
Magnet Qib |
N42 (Br Ntau dua lossis sib npaug rau 14.3 KGs, Hcj Ntau dua lossis sib npaug rau 10.8KOe) |
|
Qhov ntev |
Customize |
|
Ua siab ntev |
± 0.05 hli nyob rau hauv ntev, dav, thiab thickness |
|
Ua haujlwm kub |
Tsawg dua lossis sib npaug li 80℃(kev cai siab -kub versions muaj) |
|
Qhov ntom |
Ntau dua lossis sib npaug li 7.5 g / cm³ |
|
Nto Sib Nqus Field |
3000 ± 200 Gauss ( ntsuas nrog TM-801 Gauss meter, Nyiv |
|
Sib nqus Flux |
1.8 mWb ( ntsuas nrog fluxmeter) |
Rkev tsim nyog thiab kev xeem system
Txhawm rau kom ntseeg tau tias kev ua haujlwm ruaj khov thiab ua tau zoo ib yam, muaj kev ntseeg tau zoo thiab kev sim ntsuas tau siv thoob plaws hauv kev tsim khoom.
Kev Tshawb Fawb & Tswj Scope:
Kev tshuaj xyuas tuaj: tshuaj muaj pes tsawg leeg thiab cov khoom sib nqus
Hauv -txheej txheem txheej txheem: saib xyuas thiab ua piv txwv ntawm cov kauj ruam tseem ceeb
Ua ntej- kev tshuaj xyuas khoom xa tuaj:
Kev ntsuam xyuas cov khoom sib nqus (Br / Hcj / (BH) max)
Dimensional thiab pom kev soj ntsuam
Txheej adhesion kuaj
Tshuaj tsuag ntsev (raws li xav tau)
Cov ntaub ntawv muaj:
Magnetic Performance Test Report
Dimensional soj ntsuam daim ntawv qhia
Txheej thiab ntsev tsuag tshuaj ntsuam xyuas (raws li thov)
Kev Tswj Xyuas Zoo & Kev Tshuaj Xyuas
Zoo sib xws thiab tag nrho traceability yog khaws cia thoob plaws hauv kev tsim khoom.

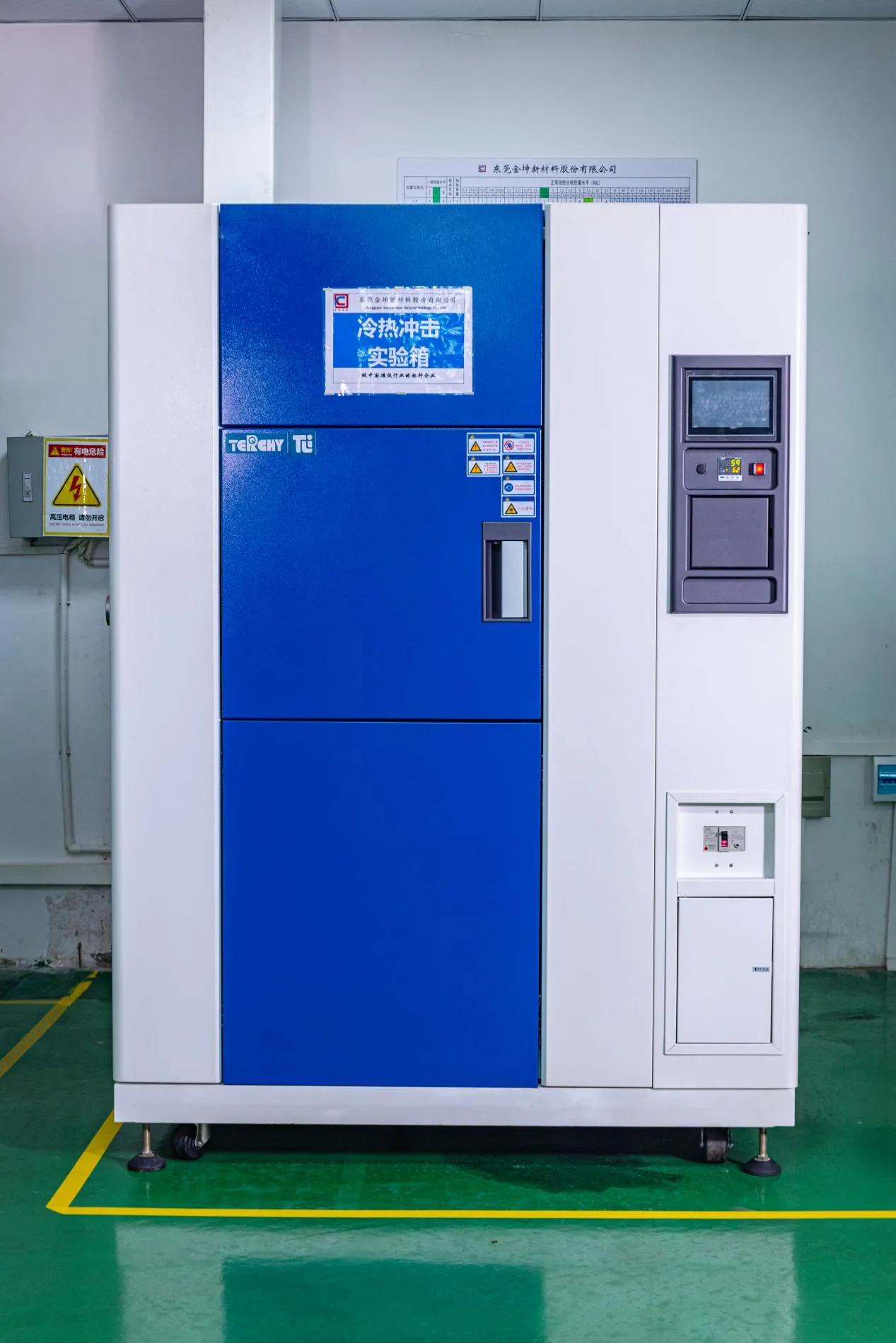

- Cov khoom sib nqus yog ntsuas siv cov cuab yeej ntsuas ntsuas, suav nrog Helmholtz coils thiab flux meters, txhawm rau ua raws li kev ua haujlwm tau teev tseg.
- Kev sim ua haujlwm, xws li rub- quab yuam thiab tuav pov thawj, yog ua qhov tsim nyog.
- Dimensional precision, deg mob, thiab txheej kev ncaj ncees raug tshuaj xyuas ntawm ntau theem ntawm kev tsim khoom
- Batch traceability yog guaranteed los ntawm cov ntaub ntawv sau tseg thiab laser npav.
- Kev tswj hwm kev ua tau zoo yog ua raws li ISO thiab IATF cov cai.
Kev nyab xeeb, ntim & thauj
Cov txheej txheem ntim cov txheej txheem thiab cov txheej txheem kev nyab xeeb yog siv los xyuas kom muaj kev nyab xeeb, kev thauj mus los, thiab kev ua haujlwm ruaj khov ntawm NdFeB hlau nplaum.
Cov Lus Qhia Txog Kev Nyab Xeeb & Kev Ua Haujlwm:
- Lub zog sib nqus - tuav tes kom tsis txhob raug mob pinching
- Cov khoom tawg yooj yim- zam kev cuam tshuam, poob qis, lossis kev ntxhov siab ntau dhau
- Cov hnab looj tes tiv thaiv raug pom zoo thaum tuav
- Khaws kom deb ntawm cov khoom siv hluav taws xob, cov khoom siv sib nqus, thiab cov pacemakers
- Tsis txhob kub siab los yog muaj zog rov qab magnetic teb los tiv thaiv demagnetization
Ntim & Thauj:
Kev sib cais ntawm tus kheej lossis txheej txheej los tiv thaiv kev sib nqus thiab kev sib tsoo
Kev poob siab- pov thawj thiab ya raws- tiv taus ntim sab hauv
Export- ua raws li kev ntim khoom
Magnetic shielding ntim muaj rau huab cua thiab kev thauj mus los thoob ntiaj teb
Customization & Service Muaj peev xwm
Peb muab cov kev daws teeb meem hloov tau yooj yim rau cov hlau nplaum, npog tag nrho cov txheej txheem los ntawm kev xav tau txhais rau ntau lawm.
Kev Pabcuam Scope:
Customization txheej txheem: yuav tsum tau tshuaj xyuas → kev ntsuam xyuas → qauv pom zoo → ntau lawm
01
Yam tsawg kawg nkaus txiav txim kom muaj nuj nqis (MOQ): txiav txim los ntawm cov khoom specifications thiab cov txheej txheem yuav tsum tau
02
Lub sij hawm ua piv txwv: feem ntau 7-15 hnub
03
Lub sij hawm ua khoom loj: feem ntau 20-30 hnub, nyob ntawm qhov kev txiav txim ntim thiab qhov nyuaj
04
Kev pab txhawb nqa: kev taw qhia kev xaiv hlau nplaum thiab kev txhawb nqa daim ntawv thov
05
FAQ
Q1. Kuv yuav xaiv li cas ntawm qib Br thiab qib Hcj siab rau kuv daim ntawv thov?
Cov qib siab Br yog qhov tsim nyog thaum qhov chaw txwv thiab qhov siab tshaj plaws sib nqus cov zis yuav tsum tau, tab sis lawv muaj kev nkag siab ntau dua rau demagnetization. Cov qib siab Hcj yuav tsum raug xaiv thaum cov hlau nplaum raug rau qhov kub siab, rov qab sib nqus teb, lossis ua haujlwm hnyav, txawm tias qhov no txhais tau tias me ntsis qis zog sib nqus.
Q2. Dab tsi yog qhov sib txawv ntawm SH, UH, EH, thiab AH qib hauv kev siv tiag?
Qhov txawv yog feem ntau nyob rau hauv coercivity thiab kub stability. SH qib feem ntau haum rau ~ 150 degree, UH txog ~ 180 degree, EH txog ~ 200 degree, thiab AH txog ~ 230 degree. Txawm li cas los xij, tiag tiag -cov npoo kev nyab xeeb hauv ntiaj teb feem ntau yuav tsum tau ua haujlwm tsawg kawg 20–30℃hauv qab cov kev txwv no.
Q3. Cov hlau nplaum siab dua - qib hlau nplaum puas tuaj yeem hloov cov hlau nplaum loj dua?
Rau ib qho twg, yog. Kev nce BHmax tuaj yeem tso cai txo qhov ntim, tab sis kev tsim hluav taws xob sib nqus, saturation ntawm cov hlau nyob ib puag ncig, thiab cov kev txwv thermal feem ntau dhau los ua lub fwj ua ntej kev ua tau zoo ntawm kev xav tau tiav.
