Product Overview& Daim ntawv thov piv txwv
Cov hlau nplaum yog tsim los siv cov hlau txiav siab heev, nruab nrab -tsawg sib tsoo, thiab ob npaug - disc sib tsoo txheej txheem, kom ntseeg tau cov npoo zoo thiab qhov ntev ntev. Kev kho deg muaj xws li ntau- txheej hlau txheej (Ni + Cu + Ni) los yog xaiv Ni txheej, tiv thaiv oxidation thiab corrosion los ntawm ib puag ncig yam, yog li ncua cov khoom siv lub neej.
Cov hlau nplaum zoo no tau tshaj peb qhov kev cia siab hauv siab -kev siv lub cev muaj zog. Lub zog sib nqus muaj zog thiab precision arc duab ua los ua ke seamless, thiab epoxy txheej muab zoo heev durability tiv thaiv corrosion. Zoo tagnrho rau peb brushless lub cev muaj zog ntau lawm kab
Technical Specifications
|

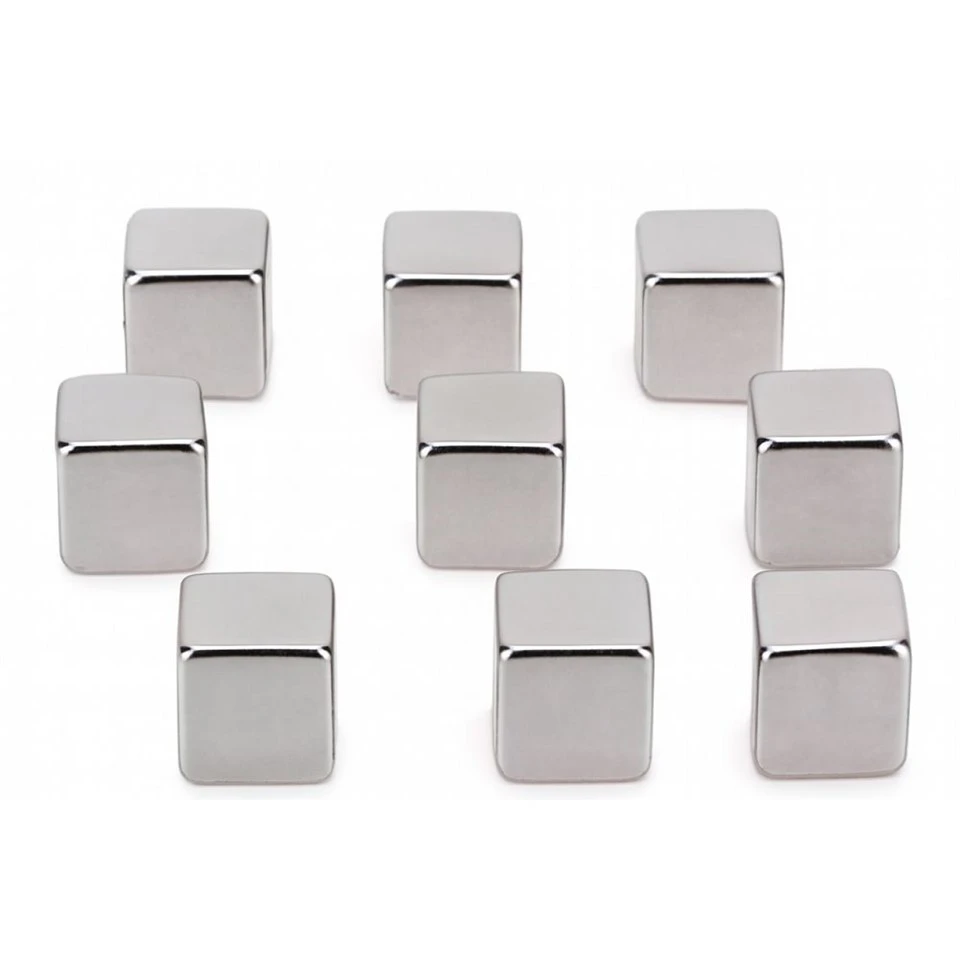

Khoom npe |
Cov hlau nplaum zoo |
|
Khoom Qib |
N42 (Br Ntau dua lossis sib npaug rau 14.2 kGs, Hcj Ntau dua lossis sib npaug rau 12 kOe) |
|
Dimension |
Customize |
|
Dimensional kam rau ua |
± 0.05 hli (ntev / dav / tuab) |
|
Ua haujlwm kub |
Tsawg dua lossis sib npaug li 80℃(siab-kub versions customizable) |
|
Qhov ntom |
Ntau dua lossis sib npaug li 7.5 g / cm³ |
|
Nto Sib Nqus Field |
3200 ± 200 Gauss ( ntsuas nrog Japanese TM-801 Gauss meter) |
|
Magnetic Flux Tus Nqi |
2.3 mWb ( ntsuas nrog fluxmeter) |
Magnetic Performance thiab Engineering tseem ceeb
Cov Khoom Siv Hluav Taws Xob ((BH) max)
Cov khoom siv hluav taws xob siab tshaj plaws ((BH) max) yog qhov qhia tau meej tshaj plaws ntawm cov hlau nplaum tag nrho cov peev txheej ua tau zoo. Nws qhia txog lub zog sib nqus siab tshaj plaws uas cov hlau nplaum tuaj yeem xa mus rau ib chav tsev ntim.
Qhov siab dua (BH) max ua rau engineers tsimcompact, lub teeb yuag, thiab siab - ua haujlwm zoo sib nqus tshuab, ua rau nws muaj txiaj ntsig tshwj xeeb hauv cov ntawv thov uas qhov chaw thiab qhov hnyav yog txwv, xws li tsheb hluav taws xob, aerospace systems, thiab high -kawg siv hluav taws xob.
(BH) max ua haujlwm raws li qhov tseem ceeb ntawm kev ntsuas thaum ntsuas lub zog sib nqus, qhov loj me, thiab kev txiav txim siab nqi.
Temperature Coefficient thiab Kev Ua Haujlwm Kub Kub Qib
NdFeB hlau nplaum qhia qhov kub thiab txias- nyob ntawm tus cwj pwm sib nqus, feem ntau yog tus cwj pwm los ntawm qhov kub thiab txias coefficient ntawm remanence thiab coercivity.
Thaum kub nce, cov khoom sib nqus maj mam txo. Yog li ntawd, xaiv qhov tsim nyogkev khiav hauj lwm kub qib(xws li N, H, SH, UH, EH, los yog AH) yog qhov tseem ceeb los xyuas kom meej qhov kev ua tau zoo nyob rau hauv cov kev pab cuam.

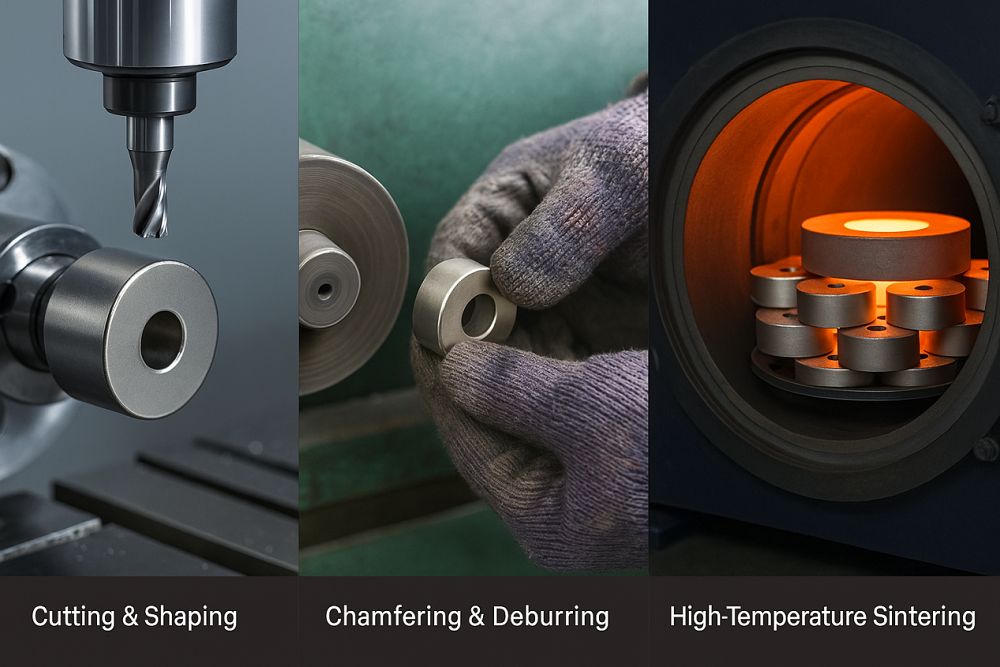

Kev tsim khoom
Magnet kev ua tau zoo tsis yog nyob ntawm cov khoom muaj pes tsawg leeg xwb tab sis kuj tseem nyob ntawm kev tsim cov txheej txheem tswj.
Sintered vs Bonded NdFeB:
Sintered NdFeB offers high density and superior magnetic performance for industrial applications
Bonded NdFeB muab kev hloov pauv ntau dua nrog cov khoom sib nqus qis dua
Oriented Pressing & Anisotropy:
Sib nqus teb sib dhos thaum nias orients siv lead ua nplej
Anisotropic qauv ho txhim kho remanence thiab zog khoom
Orientation zoo ncaj qha cuam tshuam rau kev ua tau zoo
Sintering ceev & kev ua tau zoo
Higher density reduces internal porosity
Txhim kho qhov ceev txhim kho ob qho tib si magnetic thiab mechanical zog
Kev tswj ceev yog qhov tseem ceeb rau kev ua haujlwm ruaj khov
Magnetization Options:
Axial magnetization
Radial magnetization
Ntau-ncej magnetization
Shapes, Dimensions & Machining Peev Xwm
Advanced machining xyuas kom cov hlau nplaum ua tau raws li kev tsim thiab kev sib dhos.
Muaj cov duab:thaiv, disc, nplhaib, arc, kev cai profiles
Dimensional kam rau ua:± 0.05 hli nyob ntawm qhov tsim
Flatness thiab perpendicularity tswj ib daim duab
Muaj peev xwm me me, ntu nyias, thiab cov geometry nyuaj
CNC machining, hlau txiav, thiab precision sib tsoo txhawb nqa

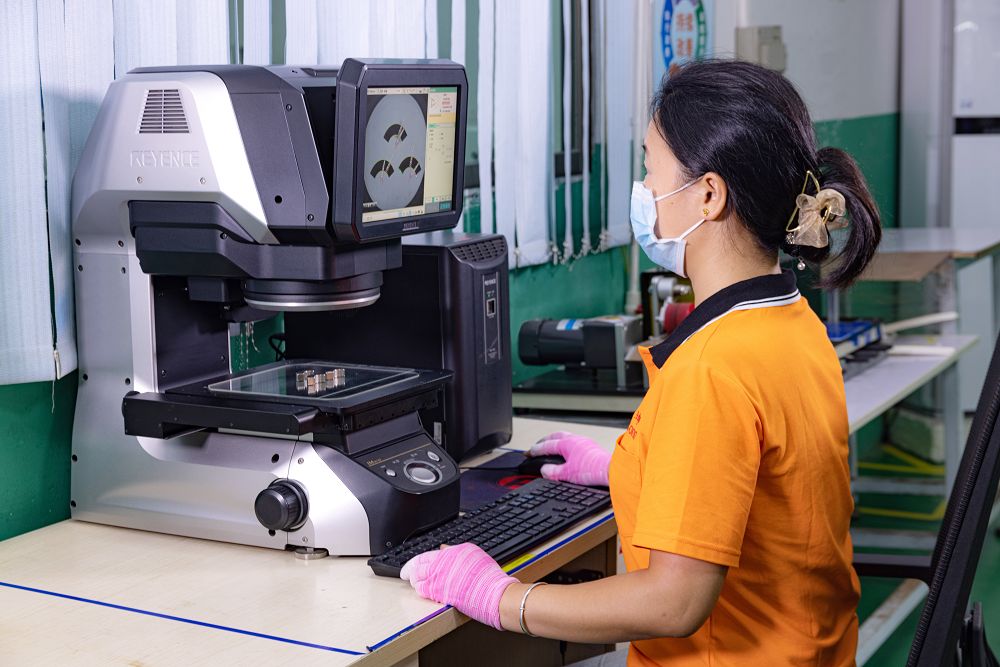

Txheej Txheem Ua Haujlwm Zoo:
Raw khoom theem: muaj pes tsawg leeg tsom xam thiab magnetic verification
Ntau lawm theem: txheej txheem parameter tswj thiab batch sampling
Ua ntej- kev txheeb xyuas cov khoom xa tuaj:
Sib nqus kev ua tau zoo sib xws kuaj
Dimensional raug thiab pom kev soj ntsuam
Txheej adhesion thiab corrosion kuj kuaj
Kev them nyiaj yug zoo:
Batch soj ntsuam cov ntaub ntawv muaj
Cov neeg siv khoom- tau txais kev kuaj tshwj xeeb
Ua ntej-Kev Muag Khoom & Tom Qab- Kev Pabcuam Muag Khoom rau NdFeB Rare Earth Magnets
Peb tau cog lus los muab kev qhia ua ntej- muag thiab tom qab- kev muag khoom txhawb nqa rau lub ntiaj teb tsis tshua muaj NdFeB hlau nplaum, ua kom ntseeg tau daim ntawv thov kev ua tau zoo thiab ntev - lub sijhawm ruaj khov. Peb cov kev pabcuam suav nrog tag nrho cov txheej txheem, los ntawm kev nug thawj zaug los ntawm kev tswj xyuas tag nrho cov khoom lag luam.
Ua ntej-Kev Pabcuam Muag
- Ua haujlwm ze nrog cov neeg siv khoom kom nkag siab txog cov kev xav tau ntawm daim ntawv thov, kev ua haujlwm, thiab kev cia siab rau kev ua haujlwm
- Muab cov lus pom zoo tshaj plaws ntawm qib hlau nplaum, cov duab, txheej, kev siab ntev, thiab kev taw qhia magnetization
- Txhawb kev tsim validation thiab cov khoom xaiv nrog kev kos duab, qauv, thiab cov ntaub ntawv ua haujlwm
Tom qab -Kev Pabcuam Muag
Muab kev pab cuam raws sij hawm thiab kev ruaj ntseg zoo
Muab kev taw qhia txog kev siv, kev tuav, thiab kev ntsuas kev ua haujlwm
Ua lub hauv paus ua rau kev tsom xam thiab siv cov kev kho kom raug sai thaum muaj teeb meem zoo
Ntxiv nrog rau cov neeg siv khoom tawm tswv yim los txhim kho cov khoom ntseeg tau thiab kev txaus siab tag nrho
FAQ
Q1. Vim li cas NdFeB hlau nplaum feem ntau tsis suav nrog cov txheej txheem rov ua dua lossis rov siv dua?
Teb: Mechanical puas tsuaj, ib nrab demagnetization, los yog coating compromise thaum lub sij hawm tshem tawm ua rau reuse unreliable. Cov hlau nplaum rov siv dua ua rau muaj kev pheej hmoo siab hauv qhov tseeb lossis kev nyab xeeb- cov ntawv thov tseem ceeb.
Q2. Cov kev coj ua cuam tshuam li cas rau micro- qib hlau nplaum puas tsuaj?
Teb: Kev cuam tshuam ntawm cov hlau nplaum los yog kev sib cuag nrog cov cuab yeej ferromagnetic tuaj yeem ua rau micro-chipping pom ntawm qhov muag liab qab. Cov micro- cov teeb meem no feem ntau dhau los ua cov ntsiab lus pib corrosion tom qab hauv cov khoom lag luam lub neej.
Q3. Dab tsi tsim kev cuam tshuam muaj tshwm sim thaum hloov ntawm SmCo rau NdFeB?
Teb: Thaum NdFeB muaj zog dua qhov ceev thiab tus nqi qis dua, kev cuam tshuam yuav suav nrog txo qhov kub thiab txias, siab dua corrosion rhiab heev, thiab kev tswj xyuas nruj dua.
