Product Overview

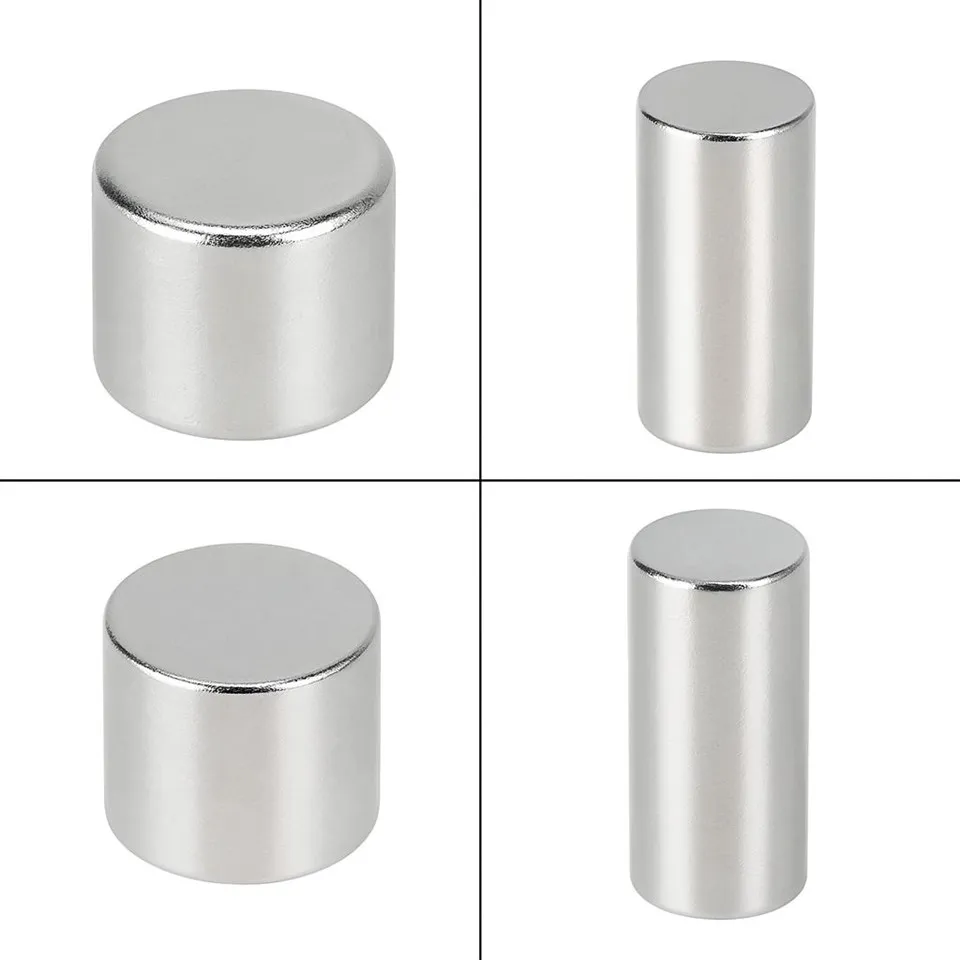

Qhov no diametrically magnetized cylindrical hlau nplaum nta ib tug compact tsim nrog muaj zog sib nqus quab yuam thiab zoo heev seem stability. Its high energy density and corrosion-resistant nickel coating ensure reliable performance in demanding environments. Qhov zoo tshaj plaws rau kev siv lub cev muaj zog rotor, nws muab cov khoom sib nqus sib nqus, txhim kho lub zog tso zis, thiab txhim kho tag nrho lub cev muaj zog. Cov duab zoo sib xws tso cai rau kev sib hloov sib npaug, txo kev co, thiab kev ua haujlwm zoo dua qub - ua rau nws yog qhov kev xaiv zoo tshaj plaws rau siab - nrawm, precision- engineering motor assemblies.
Technical Specifications
- Lub npe khoom:diametrically magnetized cylindrical hlau nplaum
- Qib Magnet:N35 (Br Ntau dua lossis sib npaug rau 11.8 kGs, Hcj Ntau dua lossis sib npaug rau 12 kOe)
- Dimensional kam rau ua:+/-0.05
- Kev khiav hauj lwm kub:Tsawg dua lossis sib npaug li 80℃(High -temp versions muaj)
- Ceev:Ntau dua lossis sib npaug li 7.5 g / cm³
- Nto Magnetic Field:3,500 Gs
- Magnetic Flux:2.0 mWb (Fluxmeter-tested)
Xav paub ntau ntxiv txog N35 Qib

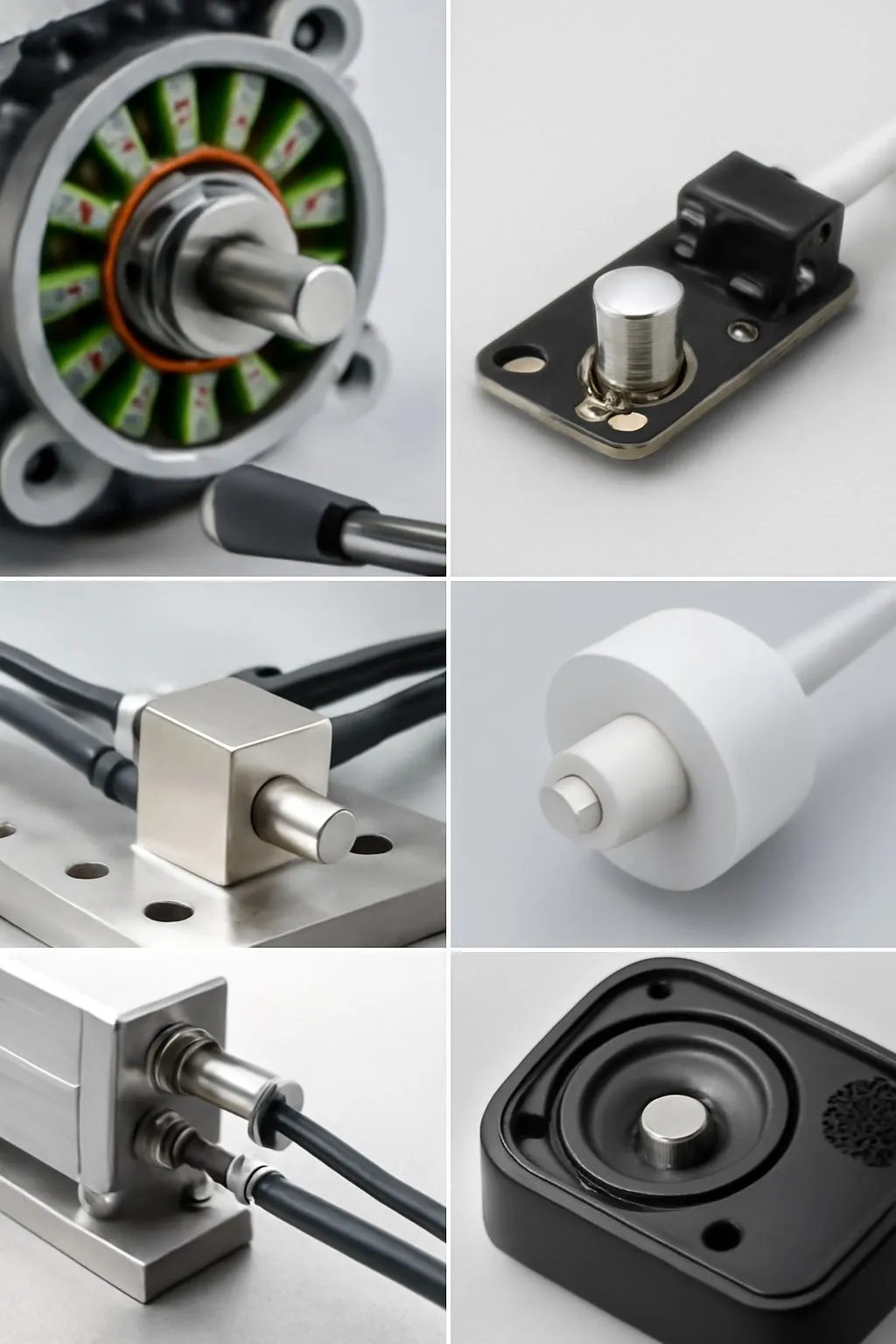

N35 yog tus qauv qib ntawm neodymium hlau boron (NdFeB) cov hlau nplaum ruaj khov, paub txog nws qhov sib npaug sib nqus kev ua tau zoo thiab tus nqi ua haujlwm. Nws muaj lub zog sib nqus sib nqus thiab cov khoom ruaj khov, ua rau nws haum rau ntau hom kev siv dav dav - lub hom phiaj. N35 hlau nplaum feem ntau yog siv rau hauv motors, sib nqus sib nqus, sensors, thiab cov khoom siv. Nrog rau qhov siab tshaj plaws kev khiav hauj lwm kub ntawm txog 80 degree, N35 yog qhov zoo tagnrho rau cov ntawv thov uas tsis muaj zog sib nqus tsis xav tau tab sis txhim khu kev qha thiab kev lag luam yog qhov tseem ceeb.
Neodymiumhlau nplaumKev paub
Rare Earth Neodymium-Iron-Boron Permanent Magnet, M Qib
Core Performance Yam ntxwv
Residual Induction (Br): kwv yees . 1.1–1.3 T
Muab qhov ruaj khov thiab txhim khu kev qha sib nqus flux ntom rau kev ua haujlwm zoo ib yam.
Intrinsic Coercivity (Hcj): feem ntau ntau dua lossis sib npaug ntawm 14–16 kOe
Muab kev tiv thaiv zoo rau demagnetization piv nrog cov qib N qib, txhawb kev siv nyob rau hauv ib puag ncig kub siab.
Ua haujlwm kub siab tshaj plaws: mus txog ~ 100 degree
Muab kev txhim kho thermal stability, ua rau nws haum rau daim ntaub ntawv nrog me ntsis tshav kub raug.
Kev tsim khoom
Sib Nqus Field Alignment thiab nias
Cov hmoov zoo yog compacted rau hauv ntsuab compacts siv axial los yog isostatic nias nyob rau hauv ib tug muaj zog magnetic teb. Qhov kev sib nqus sib nqus no taw qhia cov pob zeb siv lead ua hauv qhov kev xav tau, ua kom cov hlau nplaum muaj zog anisotropic thiab lub zog ntom ntom.
Nqus Sintering
Cov pressed compacts yog sintered nyob rau hauv ib tug siab -kub lub tshuab nqus tsev rauv. Thaum lub sij hawm sintering, particles bond metallurgically, thiab cov hlau nplaum mus txog ze - puv ntom. Cov kauj ruam no txiav txim siab qhov kawg sib nqus kev ua tau zoo thiab lub zog ntawm cov hlau nplaum.
Kev kho cua sov (Kev laus)
Tom qab sintering, cov hlau nplaum tau txais kev kho cua sov kom ruaj khov rau microstructure, optimize coercivity, thiab txhim kho kev tiv thaiv rau demagnetization, tshwj xeeb tshaj yog rau siab -kub daim ntaub ntawv.
Vim Li Cas Xaiv Peb
Dongguan Jinconn New Material Holdings Co., Ltd. yog lub tuam txhab tshaj tawm cov npe tshwj xeeb hauv kev ua tiav ntawm qhov tsis tshua muaj - ntiaj teb hlau nplaum tsim- los ntawm kev tshawb fawb thiab engineering mus rau loj - teev ntau lawm thiab kev muag khoom thoob ntiaj teb. Headquartered nyob rau hauv Xiaohe Industrial Zone ntawm Daojiao Town, Dongguan, peb txaus siab muab cov neeg muas zaub thoob plaws hauv Suav teb thiab thoob ntiaj teb.
▼ Tshaj li ob xyoo caum ntawm Kev Lag Luam Magnet Kev Lag Luam
Ntau tshaj 20 xyoo ntawm kev lag luam kev paub ua kom paub meej cov txheej txheem, kev ua haujlwm ruaj khov, thiab cov kev daws teeb meem txhim khu kev qha.
▼ Rigorous Quality Assurance & Tailored Engineering
Peb tswj hwm kev tswj hwm nruj ntawm txhua theem thiab muab kev hloov pauv hloov tau kom ua tau raws li ntau yam kev thov.
▼ Kev Pabcuam Ntiaj Teb nrog Kev Pabcuam Ntau Hom Lus
Peb pawg engineering thiab kev muag khoom muab kev sib txuas lus zoo thiab kev xa khoom thoob ntiaj teb los txhawb cov neeg siv khoom thoob ntiaj teb.

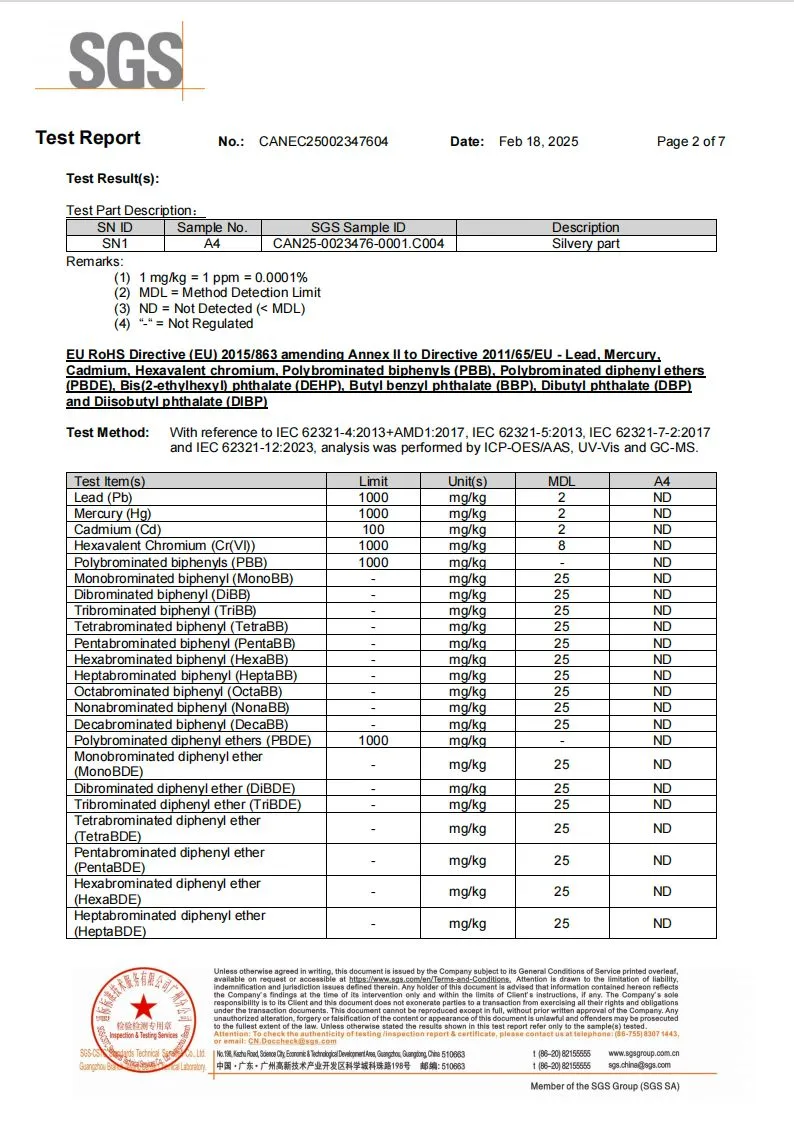

▼ Ua raws li RoHS thiab REACH Standards
Tag nrho cov khoom ua tau raws li kev cai thoob ntiaj teb ib puag ncig thiab kev nyab xeeb, ua kom muaj kev nyab xeeb thiab ua raws li kev siv hauv ntau qhov kev lag luam.
Kev Nyab Xeeb, Ntim & Kev Tswj Xyuas Kev Xa Khoom
Cov txheej txheem kev nyab xeeb thiab kev ntim ntim tau siv los txo cov kev pheej hmoo thaum xa khoom thiab thov.
Kev tuav pov hwm & kev pheej hmoo rau kev txiav txim siab:
- Kev nrawm nrawm tuaj yeem tshwm sim thaum cov hlau nplaum ze rau ib leeg
- Mechanical shock tej zaum yuav ua rau puas
- Cia thiab daim ntawv thov kub yuav tsum tau tswj
- Demagnetization txaus ntshai yuav tsum tau txiav txim siab thaum tsim
Ntim & Xa khoom:
- Muab faib thiab cais cov ntim raws li lub zog sib nqus
- Sab hauv cushioning los tiv thaiv kev sib tsoo thiab kev sib tsoo
- Clear magnetic cov khoom txheeb xyuas ntawm cartons
- Shielded los yog txheem ntim xaiv raws li txoj kev xa khoom
FAQ
Q1 Ua li cas hlau nplaum txheej cuam tshuam kev ntseeg tau thiab lub neej ntev?
NdFeB hlau nplaum yog qhov muaj zog heev rau corrosion. Kev xaiv txheej yog nyob ntawm ib puag ncig thiab kev siv:
Ni-Cu-Ni: Zoo dav- lub hom phiaj tiv thaiv, kho kom zoo nkauj tiav.
Epoxy: Superior corrosion kuj, haum rau huab cua los yog marine ib puag ncig.
Zn: Kev lag luam, kev tiv thaiv me ntsis.
Parylene: nyias, txheej txheej rau precision lossis kev siv kho mob.
Kev xaiv txheej tsis raug tuaj yeem ua rau oxidation, lub zog poob, lossis kev ua haujlwm tsis zoo.
Q2 Cov hlau nplaum NdFeB puas tuaj yeem hloov kho rau cov khoom sib nqus tshwj xeeb?
Yog lawm. Magnetic kev ua tau zoo tuaj yeem tsim los ntawm:
Qib xaiv
Geometry optimization
Magnetization qauv (axial, diametrical, multi-ncej, radial)
Kev sib dhos tsim (sib nqus arrays, Halbach arrays)
Finite Element Analysis (FEA) feem ntau yog siv los simulate thiab optimize qhov chaw faib khoom.
Q3 Dab tsi kam rau ua tiav rau NdFeB hlau nplaum?
Hom dimensional tolerances:
Sintered NdFeB: ± 0.05 hli rau ± 0.1 hli (nyob ntawm qhov loj thiab cov duab)
Precision sib tsoo: Tighter tolerances tau tab sis nce nqi
Sib nqus cov cuab yeej kam rau ua (Br, Hcj) yog txhais los ntawm cov qauv kev lag luam tab sis yuav txawv ntawm ntau ntau lawm.
